[CAN 02] - Bring Up a CAN Interface on Linux

Plugging in a USB-to-CAN adapter establishes a USB connection. It does not tell us whether the adapter can receive an actuator's feedback. We need to identify the Linux interface, set its bitrate, and observe a frame whose meaning we know.

SocketCAN exposes CAN channels as Linux network interfaces such as can0. Applications use the same socket API across supported adapters. The adapter driver handles the hardware-specific part. Linux kernel, SocketCAN

The commands below target Ubuntu with iproute2 and can-utils, using Classical CAN at 500 kbit/s. Replace that bitrate with the actuator's documented value. These are setup instructions and illustrative outputs, rather than a new hardware test record.

Find out what the adapter exposes

Install the tools used to inspect interfaces and receive frames:

sudo apt update
sudo apt install iproute2 can-utils usbutils

Connect the adapter, then check USB enumeration and the available network interfaces:

lsusb
ip -brief link

Identify which new device belongs to the adapter, especially when several CAN channels are connected. This post uses can0; substitute the actual name in every command.

The firmware determines the path for a CANable-compatible adapter. candleLight uses the Linux gs_usb driver and appears as a network interface. SLCAN firmware exposes a serial protocol that needs an attachment step. A serial port alone does not establish SLCAN compatibility; check the firmware documentation. CANable getting started

PCAN installation is a separate branch of this lesson. Many PEAK adapters already have mainline kernel support, so start with the interface check before installing a vendor driver. The PCAN sub-post also distinguishes SocketCAN from PCAN-Basic applications.

Configure a native CAN interface

Stop programs using the selected channel before changing its configuration. Take it down, set the bitrate, and bring it up:

sudo ip link set can0 down
sudo ip link set can0 type can bitrate 500000
sudo ip link set can0 up
ip -details -statistics link show can0

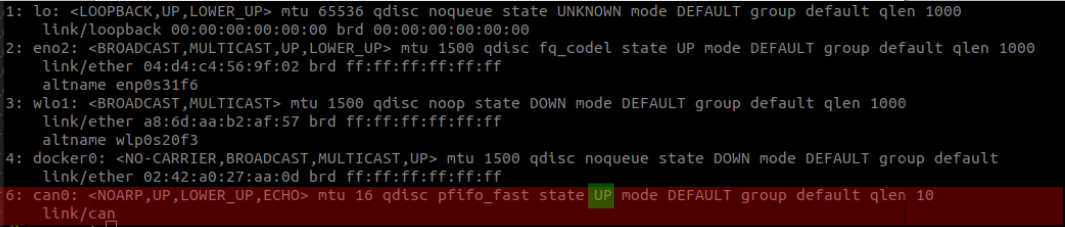

For a native interface, inspect the administrative UP flag and the reported bitrate 500000. The top-level operational state can appear as UNKNOWN on a usable CAN interface. The CAN-specific state, such as ERROR-ACTIVE or BUS-OFF, is a separate field. ERROR-ACTIVE is a protocol state, not a report that the setup has already failed. SocketCAN network interface details

These settings stay in effect for this interface session. Reconnecting an adapter or rebooting may require configuration again. First establish a working manual setup before adding automatic startup rules.

Attach SLCAN firmware through its serial port

Skip this section if the adapter already exposes a native CAN interface. Locate the serial port and any persistent USB serial links:

ls /dev/ttyACM* /dev/ttyUSB* 2>/dev/null
ls -l /dev/serial/by-id/

Use the entry belonging to the adapter. A /dev/serial/by-id/ link, when available and unique, avoids depending on the order of USB enumeration. The following example assumes the correct port is /dev/ttyACM0 and the name can0 is unused:

sudo modprobe slcan
sudo slcand -o -c -s6 /dev/ttyACM0 can0
sudo ip link set can0 up
ip -brief link show can0

For SLCAN, -s6 selects 500 kbit/s; -s8 selects 1 Mbit/s. This configures the CAN side through the firmware's serial command protocol. The native-interface type can bitrate command is not the configuration path for this serial attachment. Confirm the rate codes and serial settings supported by the exact firmware. CANable SLCAN instructions

Reconnecting the USB device breaks the serial attachment. Close the old slcand instance before attaching the new port. A firmware change is a separate operation; it is unnecessary when the existing firmware already provides the required interface.

Receive one documented feedback frame

Use the terminated twisted pair described in CAN 01. Power the actuator according to its manual and establish whether it sends feedback automatically or needs a documented request. Keep the actuator in its documented non-motion state during communication setup.

Listen without sending an application frame:

candump -tz can0

-tz starts timestamps at zero for the first received frame. An illustrative decoded frame looks like:

(000.000000)  can0  123   [2]  34 12
(000.010000)  can0  123   [2]  34 12

Compare the identifier, payload length, and byte layout with the device manual. The hex identifier 123 and bytes 34 12 here are examples, not a command or a known actuator response. If the device specifies periodic feedback, compare successive timestamps with that expected period. can-utils, candump options and filters

candump reads frames delivered by the interface. Running it does not put the controller into hardware listen-only mode: a normally configured receiver can still acknowledge valid bus frames. Also, SocketCAN can deliver locally transmitted frames to other local sockets. Seeing your own transmission in a logger does not establish that the actuator received or acted on it. SocketCAN local loopback

Separate an empty log from a failed link

An empty capture can mean that no device is transmitting. Check the feedback behavior before treating silence as a wiring failure. Inspect native-interface statistics before and after a receive attempt:

ip -details -statistics link show can0

Increasing error counters or a transition to BUS-OFF calls for checking bitrate, wiring, termination, and the other active nodes. A transmitted frame needs acknowledgement from another normally participating CAN node. A USB adapter alone on a cable does not provide that peer. Serial firmware may expose fewer diagnostic counters than a native driver, so absence of a counter is not evidence of an error-free link.

After correcting a bus-off cause, a native interface can be restarted manually:

sudo ip link set can0 type can restart

This resumes a stopped controller; it does not repair the cause. Keep automatic restart out of the first diagnosis so repeated faults remain visible. Linux kernel, CAN device states and bus-off recovery

Practice frame syntax without a motor

A virtual CAN interface lets you check the command format without assigning arbitrary bytes to a physical actuator. Create vcan0:

sudo modprobe vcan
sudo ip link add dev vcan0 type vcan
sudo ip link set vcan0 up

Run a receiver in one terminal:

candump vcan0

Send the example payload from a second terminal:

cansend vcan0 123#3412

The receiver should display identifier 123 and the two bytes 34 12. In cansend syntax, # separates the identifier from the payload. This checks a local software path. Virtual CAN has no physical bitrate, termination, acknowledgement wiring, or motor behavior to verify. can-utils, cansend syntax

Remove the virtual interface when finished:

sudo ip link delete vcan0

For the physical interface, save a short feedback capture with its bitrate and device protocol reference. The ESP32 example in CAN 03 can then build on an identified channel and a known frame, rather than an interface that merely reports UP.
