Silicone is difficult to simulate for a reason that is easy to hide in a good-looking contour plot: it changes shape much more readily than it changes volume.

For a linear elastic material,

K=E3(1−2ν),K = \frac{E}{3(1-2\nu)},

where KK is bulk modulus, EE is Young's modulus, and ν\nu is Poisson's ratio. As ν\nu approaches 0.50.5, the bulk modulus grows rapidly. The material can shear and distort, but volumetric deformation becomes expensive.

That is physically reasonable for a nearly incompressible elastomer. It is numerically dangerous for a displacement-only finite element.

Volumetric locking is artificial stiffness

A low-order displacement element may not have enough kinematic freedom to satisfy near-incompressibility while also representing the actual deformation. Instead of finding the correct nearly volume-preserving shape, it suppresses deformation altogether.

The result is volumetric locking:

  • the simulated structure appears too stiff,
  • reaction force becomes mesh- and formulation-dependent,
  • deformation patterns can look smooth while being quantitatively wrong,
  • and refining the mesh may not fix the underlying constraint problem efficiently.

This matters directly for fingertip design. If a void appears to “reduce stiffness,” the result is useless when the solid reference was artificially stiff. Geometry optimization will exploit the numerical artifact.

The benchmark came before the fingertip

The lit_ws validation did not begin with the full pad. It first separated three questions:

  1. Can the Kratos build solve a finite-strain hyperelastic solid?
  2. Can it solve frictionless contact?
  3. Which element formulation remains reliable near ν=0.49\nu=0.49?

The nearly incompressible benchmark used a 10 mm by 10 mm, 1 mm-thick plane-strain block under prescribed compression. The production candidate became:

Element:
  TotalLagrangianMixedVolumetricStrainElement2D3N

Constitutive law:
  HyperElasticPlaneStrain2DLaw

Primary unknowns:
  DISPLACEMENT_X
  DISPLACEMENT_Y
  VOLUMETRIC_STRAIN

The mixed T3 formulation adds volumetric strain as an independent nodal unknown. It does not force the displacement interpolation alone to carry the incompressibility constraint.

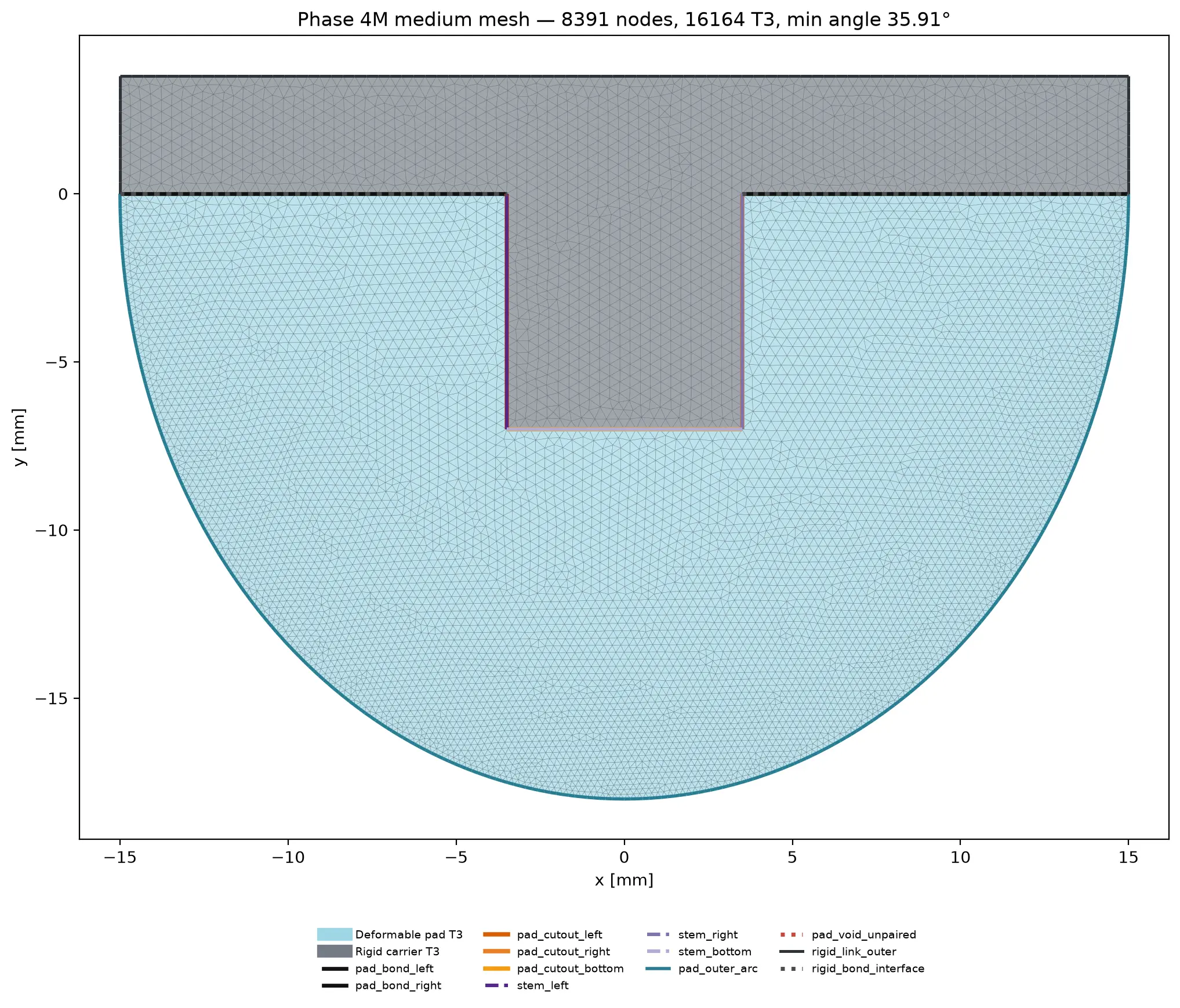

Medium triangular mixed-element mesh of the LIT fingertip

The adopted fingertip mesh uses three-node mixed volumetric-strain elements. The element formulation determines how the model approximates deformation and near-incompressibility.

Why identical mesh forces were not enough

At ν=0.49\nu=0.49, the mixed T3 compression benchmark gave a final reaction of approximately 7.0576157.057615 N on coarse, medium, and fine meshes. The medium–fine difference was effectively numerical zero.

That sounds like perfect mesh convergence. It is not a result that can be generalized to the fingertip.

The benchmark deformation was close to affine, and a P1 triangle can represent that deformation exactly. The exercise behaved like a nonlinear patch test. It established formulation consistency for the simple field. It did not prove that contact, curved geometry, or localized strain would be mesh-independent.

This distinction is essential:

A benchmark should validate the mechanism it was designed to test, not every mechanism that will appear later.

Why ν=0.499\nu=0.499 was rejected

If ν=0.49\nu=0.49 is nearly incompressible, why not use 0.4990.499 and get closer to the ideal?

Because a more extreme parameter is not automatically a more accurate model.

In the current benchmark:

  • the ν=0.499\nu=0.499 medium case became non-finite at 30% compression,
  • the fine case completed but required as many as 11 Newton iterations,
  • and its elementwise det⁡(F)\det(F) range widened to approximately 0.85530.8553–1.10561.1056.

The coarse and fine final reactions were close, but the medium failure broke the expected refinement behavior. The formulation was therefore adopted at ν=0.49\nu=0.49 and not adopted at ν=0.499\nu=0.499.

This is an engineering choice, not a claim that all silicone has ν=0.49\nu=0.49. The model parameter must eventually be identified from material tests. The numerical system must first show that it can handle the chosen range reliably.

A solver can return success with non-finite fields

One of the most useful failures came from the ordinary total-Lagrangian comparison.

The fine displacement-only case reached 8% compression and returned True from SolveSolutionStep(). Independent field validation then found non-finite displacement and reaction values.

This is the difference between algorithmic return status and physical acceptance.

For this monotonic compression benchmark, load-step acceptance checks include:

DISPLACEMENT              finite
REACTION                  finite
VOLUMETRIC_STRAIN         finite
elementwise det(F)        positive and finite
force curve               smooth and monotonic
mesh-scale oscillation    absent

For contact cases, gap, pressure, active-set state, and force closure must be added.

What det⁡(F)\det(F) protects

The deformation gradient F\mathbf{F} maps a material neighborhood from the reference configuration to the current configuration. Its determinant

J=det⁡(F)J = \det(\mathbf{F})

measures local area change in the 2D kinematics used here.

  • J>0J>0 preserves orientation.
  • J→0J\rightarrow0 indicates local collapse.
  • J<0J<0 indicates element inversion.

The mixed element did not expose the desired integration-point deformation gradient through the current runtime interface, so lit_ws computed F\mathbf{F} from each affine T3's reference and current nodal edge matrices. The area-weighted mean was cross-checked against the global deformed-area ratio.

That agreement is a consistency check, not an independent validation—the two quantities are geometrically linked for affine triangles. It is still better than accepting a mesh because the picture looks plausible.

The adopted numerical contract

For the 2D baseline, the current contract is:

  • plane strain,
  • mixed finite-strain T3 solid,
  • hyperelastic constitutive law,
  • ν=0.49\nu=0.49,
  • medium/fine comparison for nonuniform problems,
  • independent finite-value and det⁡(F)\det(F) checks.

It does not establish the final three-dimensional fingertip behavior. It establishes a numerical floor below which geometry conclusions should not be trusted.

The next difficulty is contact. A contact algorithm can converge while using an under-resolved pressure field, a wrong master/slave direction, or an unverified contact resultant. A case can also fail one acceptance gate while retaining displacement outputs that pass their own checks. We need a richer definition of “correct.”
